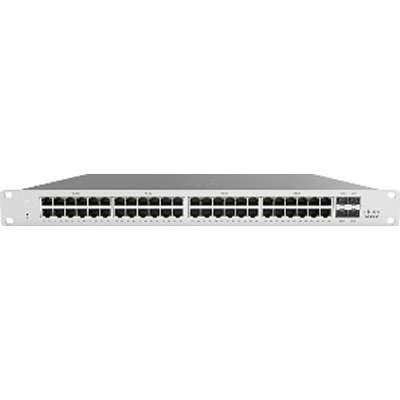

Cisco Meraki MS120-48FP-HW 48-Port Gigabit PoE+ Switch
The Cisco Meraki MS120-48FP-HW is a cloud-managed Layer 2 switch designed for branch and campus deployments. Featuring 48 Gigabit Ethernet ports with full PoE+ support and four 1GbE SFP uplink interfaces, it offers a non-blocking switching capacity of 104 Gbps. The switch supports a robust 740W PoE budget, providing up to 30W per port to power devices like access points, phones, and cameras.
Key Features:
- 48 x 10/100/1000BASE-T Ethernet RJ45 ports with PoE/PoE+ support
- 4 x 1GbE SFP uplink interfaces
- 740W PoE budget with dynamic power allocation
- Cloud-managed via the Meraki Dashboard
- Fanless design for silent operation
- 1RU rack-mountable
- Voice and video QoS
- IPv4 and IPv6 ACLs
Meraki Cloud Management:
Managed through the intuitive Meraki Dashboard, the MS120-48FP-HW offers zero-touch provisioning, remote troubleshooting tools, and comprehensive network visibility. Administrators can configure ports, monitor traffic, and receive alerts for power loss, downtime, or configuration changes, all through a centralized platform.
Technical Specifications:
- Model: MS120-48FP-HW
- Switching Capacity: 104 Gbps non-blocking
- Forwarding Rate: 77.38 Mpps
- MAC Address Table Size: 16,000 entries
- Power Supply: Fixed internal
- Power Consumption: 37W (idle) / 908W (full load)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 1.72” x 17.32” x 13.38” (4.40 x 44 x 34 cm)
- Weight: 12.70 lb (5.70 kg)
Condition: New TTG warranty one year
Image may not match product exactly.
